How do I export CER configurations to .csv file?

You will start by logging in to the CER publisher node and follow the below steps, depending on what data you want to export

Exporting ERL configurations

  1. Login to your CER Administration Page

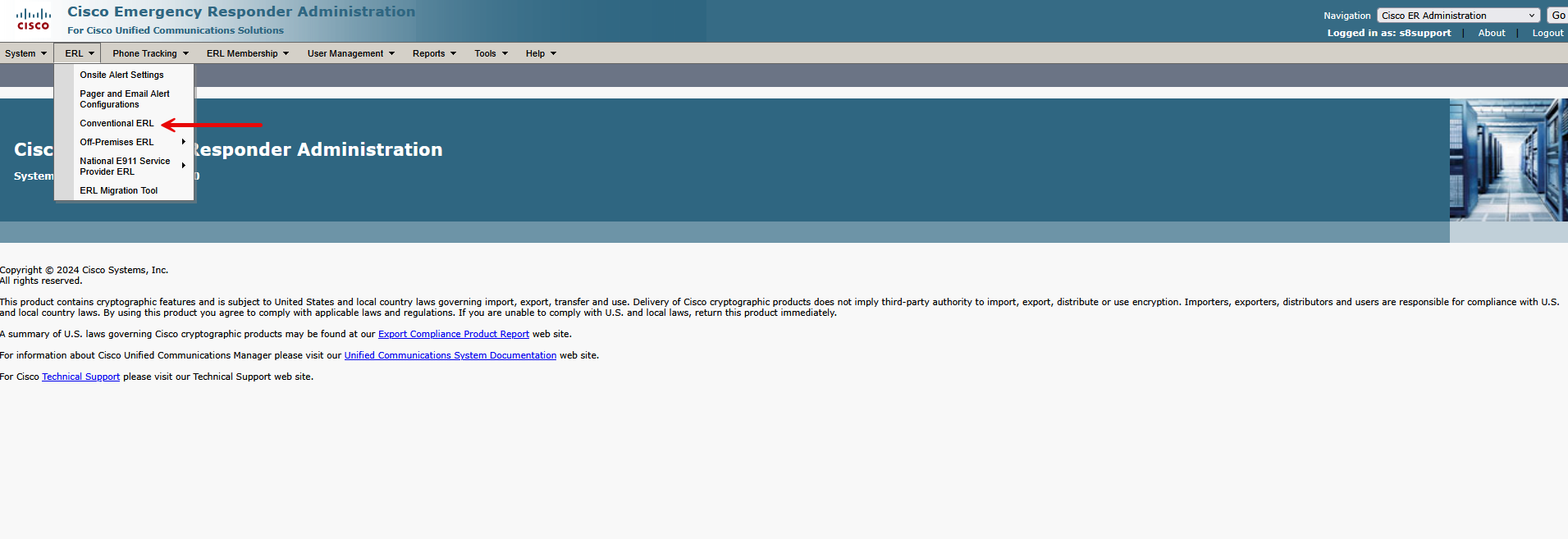

  2. Click on ERL >> “Conventional ERL”
    image1911×657 82.7 KB

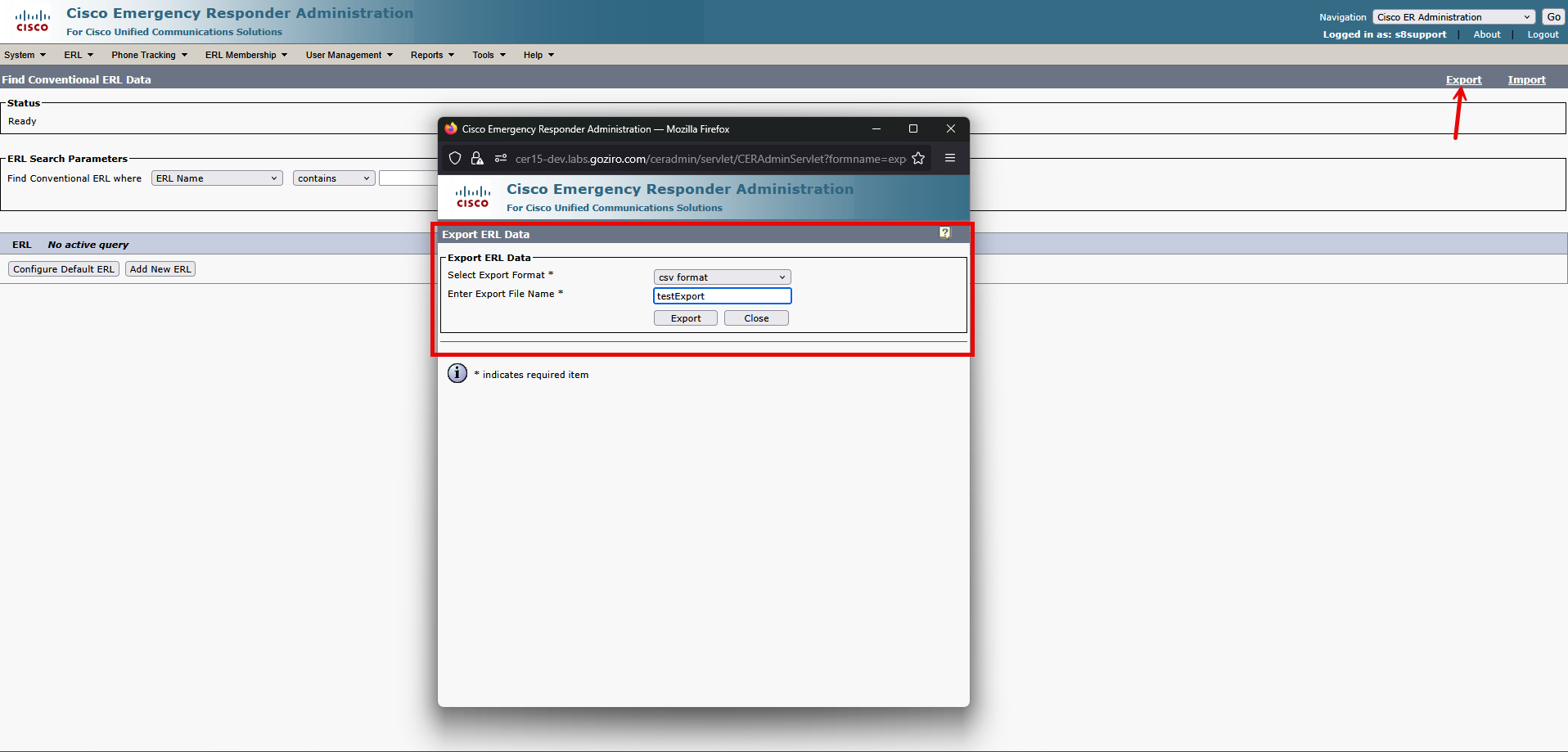

  3. Click “Export” in the top right
  4. Select your format “csv format” in this case and give your export a name then click “Export”
    image1916×919 65.9 KB

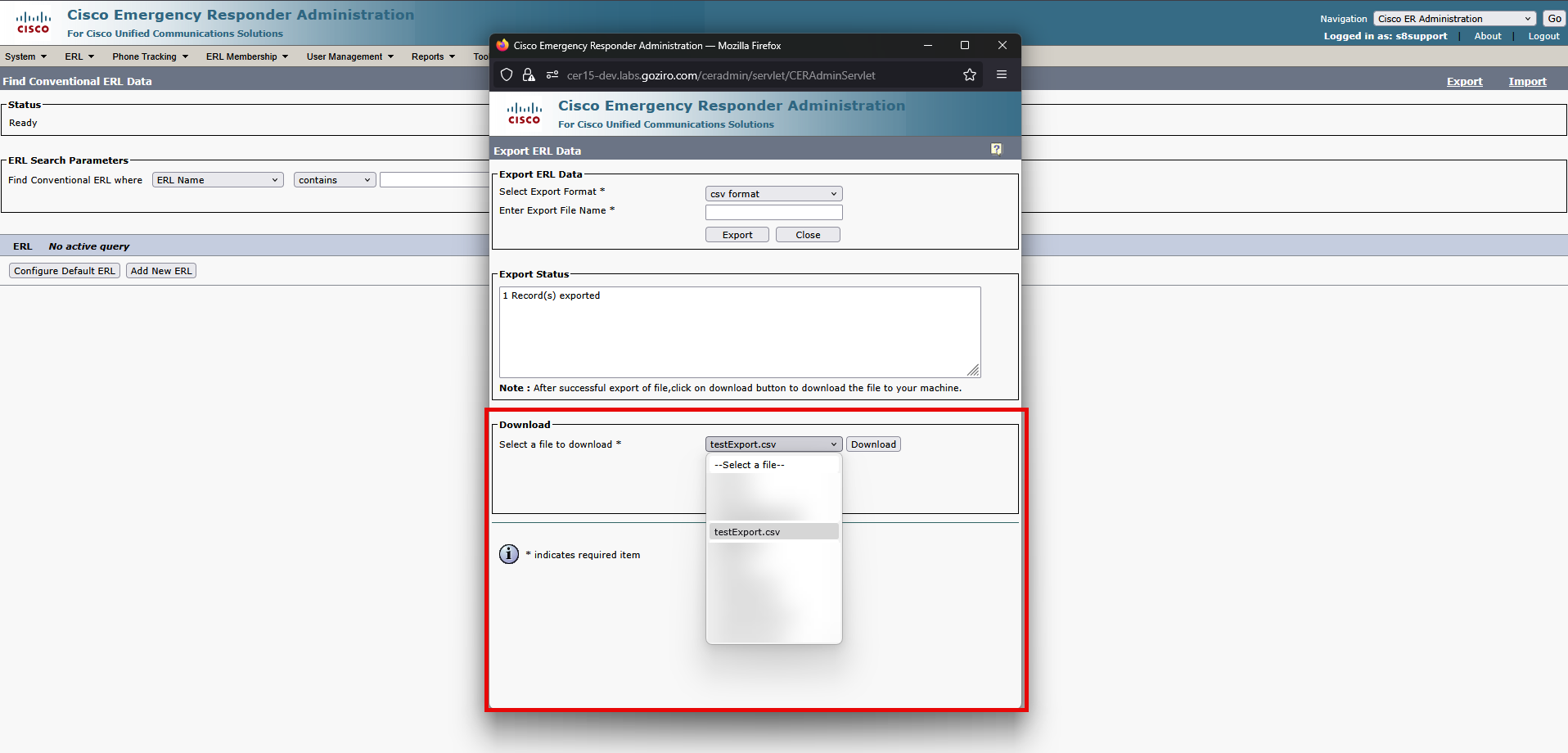

  5. If the export is successful, move to the bottom of the window to the “Download” section and select the export you just created and download it
    image1916×920 82.6 KB
  6. You have now completed your export of ERL configurations and the file should be in your downloads

Exporting Subnet configurations

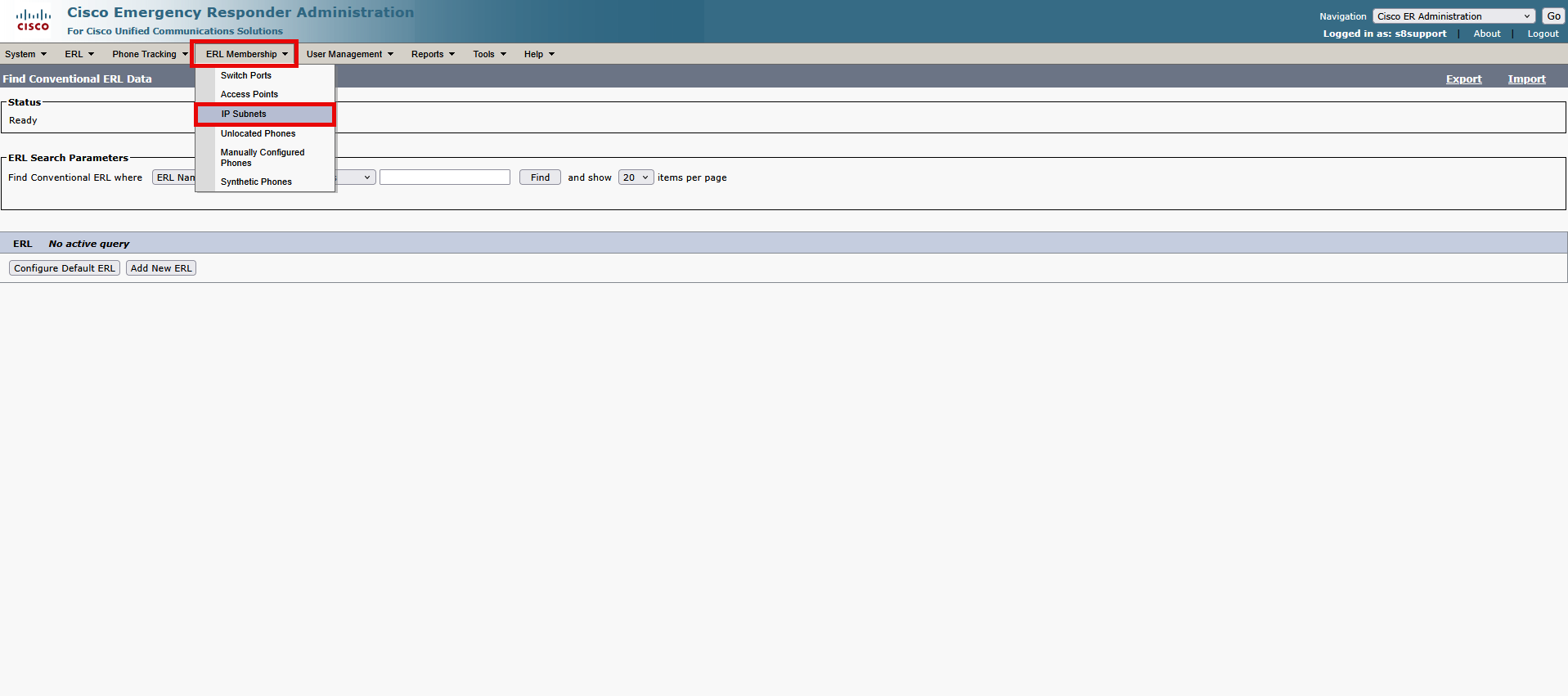

  1. Click on “ERL Membership” >> “IP Subnets”
    image1917×851 27.1 KB
  2. Click on “Export” in the top right
  3. Select your format “csv format” in this case and give your export a name then click “Export”
  4. If the export is successful, move to the bottom of the window to the “Download” section and select the export you just created and download it
  5. You have now completed your export of Subnet configurations and the file should be in your downloads

Export Switch Configurations

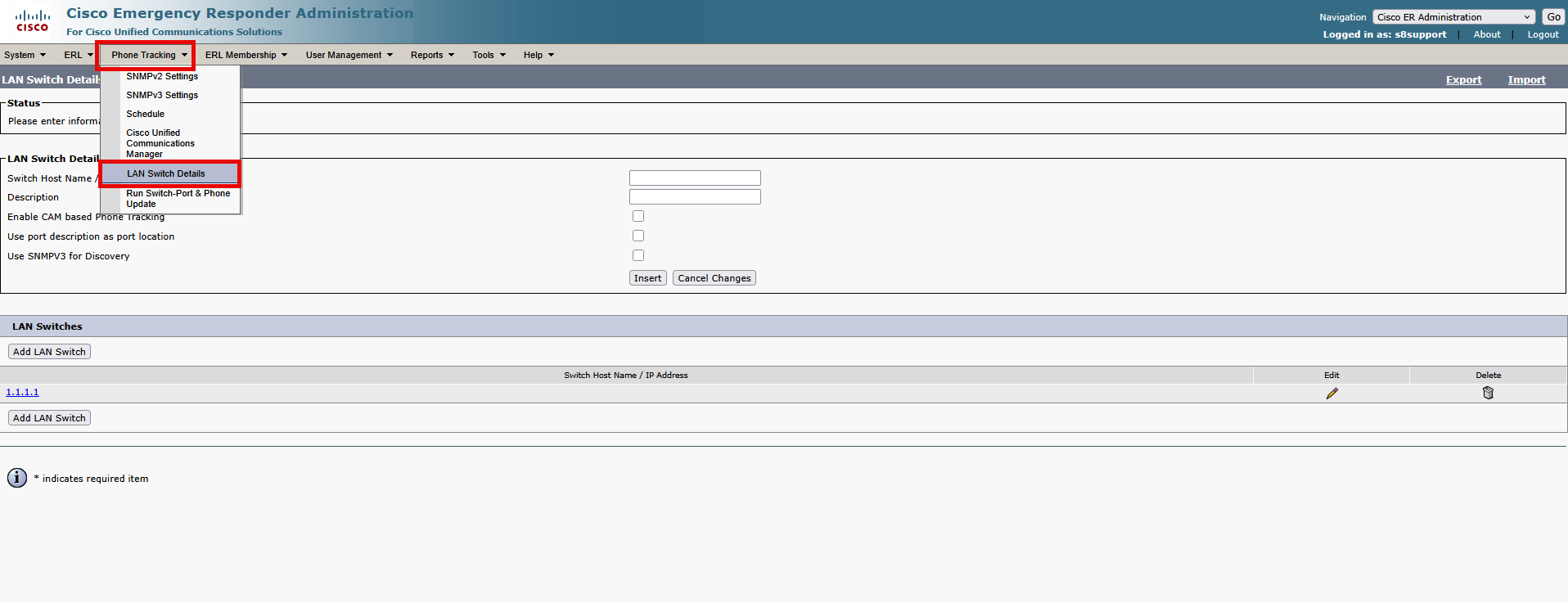

  1. Click on “Phone Tracking” >> “LAN Switch Details”
    image1916×737 32 KB
  2. Click on “Export” in the top right
  3. Select your format, “csv format” in this case and give your export a name then click “Export”
  4. If the export is successful, move to the bottom of the window to the “Download” section and select the export you just created and download it
  5. You have now completed your export of Switch configurations and the file should be in your downloads

Export Access Point Configurations

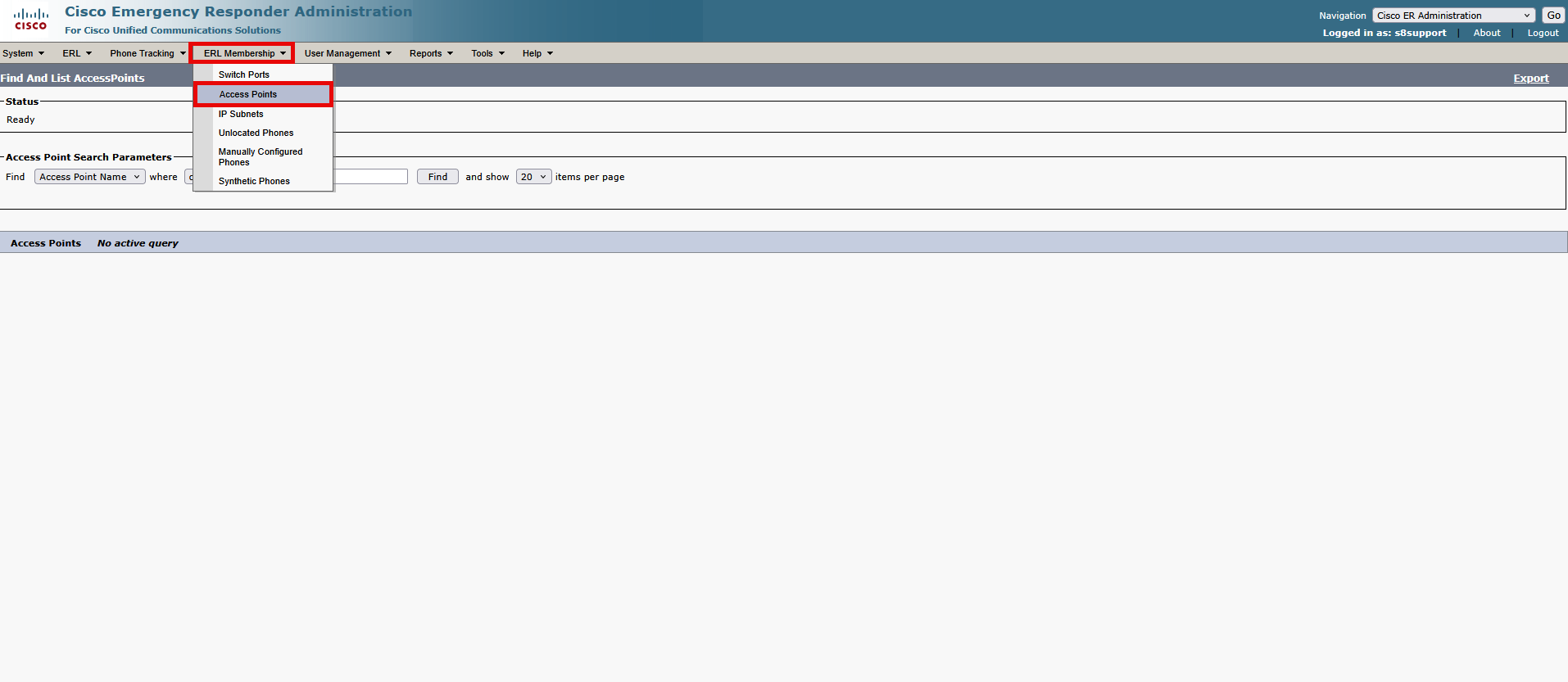

  1. Click on “ERL Membership” >> “Access Points”
    image1914×833 26.1 KB
  2. Click on “Export” in the top right
  3. Select your format, “csv format” in this case and give your export a name then click “Export”
  4. If the export is successful, move to the bottom of the window to the “Download” section and select the export you just created and download it
  5. You have now completed your export of Access Point configurations and the file should be in your downloads
